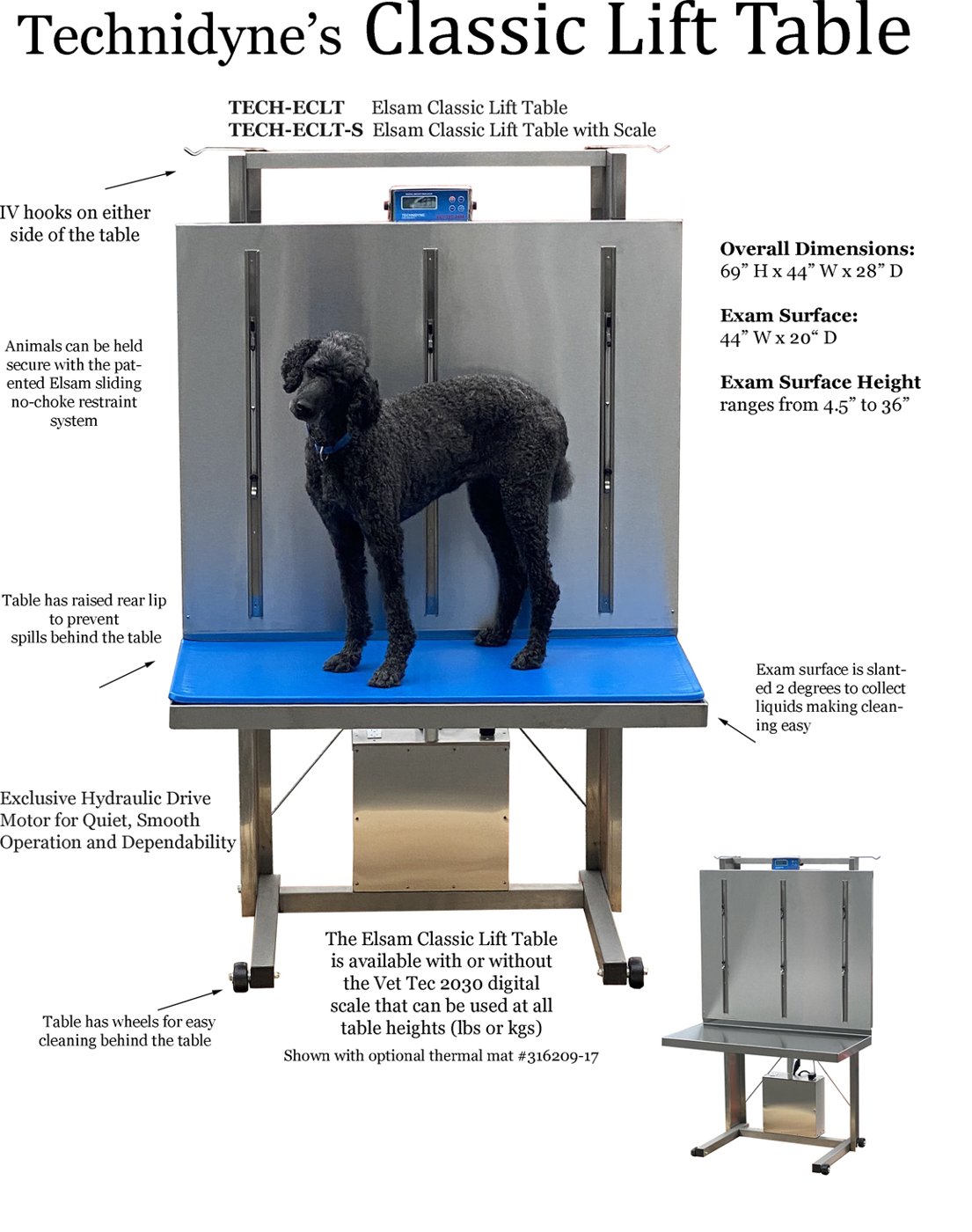

Shown with optional scale and mat.
Elsam Classic Lift Table
Hydraulic lift table in polished stainless steel. Lowers to 4 inches so patients walk on without being lifted. Self-contained hydraulic power unit, no remote mounting.
| Model | Configuration |
|---|---|
| TECH-ECLT | Without scale |
| TECH-ECLT-S | With integrated VET-TEC 2030 scale |
The scale is installed during manufacturing and cannot be added later. Specify TECH-ECLT-S at the time of order.
| Table height | 4" minimum to 40" maximum |
|---|---|
| Horizontal surface | 44" x 20" |
| Upright restraint panel | 44" x 36" |
| Overall dimensions | 70" H x 44" W x 28" D |
| Construction | Polished stainless steel |
| Shipping weight | 310 lb |
| Warranty | Three years, parts and workmanship |
Questions on configuration: 1-800-654-8073, Monday to Friday, [HOURS] ET.
Features
What is built into every Elsam Classic.
Lift and drive
- Hydraulic drive. Smooth, quiet, does not slip.
- 4" minimum height. Comparable lift tables start at 12" to 18".
- Self-contained hydraulic power unit inside the frame. No remote mounting. Technidyne exclusive.
Construction
- All polished stainless steel.
- One-piece built-in back keeps liquids and debris from spilling behind the table.
- No-spill tabletop. Does not leak or drip onto the back of the table.
Restraint
- Patented sliding, no-choke Elsam restraint system.
- 44" x 36" upright restraint panel.
Working at the table
- Additional electrical outlets on the back of the table for clippers, exam lights and similar equipment.
- Optional scale with extra-bright display and wide viewing angle. Reads lb or kg at any table height.
Design details
IV hooks on either side of the table. Exam surface slanted 2 degrees to collect liquids. Raised rear lip. Wheels for moving the table to clean behind it.
Both configurations ship with the Elsam restraint system. The optional thermal mat is part number 326207-17.
Download the annotated sheet (PDF)
Other lift tables
Request a quote on the Elsam Classic
Quotes are provided at no charge, typically within one business day. For immediate assistance call 1-800-654-8073.
